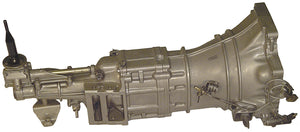

ESR 5 Speed Rebuilt Race Ready Transmissions

Product Description
$1,350.00
Maximum quantity available reached.

Now offering the newly legal SM upgraded gear set!

We are offering our 5 Speed Race ready rebuilt transmissions to the SM community. These transmissions are fully gone through, All the synchros, sliders and shift forks are changed. We harden the shift forks for improved durability. We start with a street version, not a wore out trans that came out of a race car. We have sold over 350 of these transmissions and they really are the best out there. These aren't assembled by someone in their spare time, These are built by a professional who builds manual race boxes daily. They shift better than any I have ever driven and I have used them all. These transmissions have far less drag than any of the competitors units out there as well. They are set up perfectly and no detail is over looked.

We warranty all our transmissions for 60 days, races included. Who else does that?

We sell 90-05 transmissions, we don't need a core.

If you would like the showroom package of a bead blasting the case and new plated bolts it will add $200, but IMO this is a complete waste of $$$ and not in my own car.

All boxes come with new hardened synchro springs and the counter shaft sleeve.

    Vehicle Applications:

    • 1990-2005 Mazda Miata 1.6L & 1.8L NA6, NA8, NB1, & NB2

    For upgraded gear set ONLY:

    When you purchase the upgraded gear set, this kit includes the following:

    • 2nd gear - uses NA 1 piece synchro - 0000-02-5812
    • 3rd gear - 0000-02-5813
    • Input shaft - 0000-02-5810
    • Counter shaft - 0000-02-5811
    • 5th gear pair - 0000-02-5814
    • Counter shaft reinforcement collar - 0000-02-5816
    • 5th gear thrust washer - 0000-02-5817
    • 5/R hub assembly - 0000-02-5815

    Break in is required. Use of a racing 75w-140, such as Motul Competition Gear 75w-140, is required for break in. As much non racing time as possible is suggested for break in whether it be on a dyno, half speed track days, or even idling in each gear on the lift. Whatever you can do to get as much rotation time on the gears as possible before racing is needed. Drain and fill oil after break in.

    Use of a racing 75w-140 gear oil is suggested. 75w-90 at minimum, but again, 140 is suggested. Do NOT use a non "gear oil" such as synchromesh, MTL, or ATF. A proper gear oil that floats gears and thrust surfaces appropriately creates less "drag" with these gears, and the OE gears, than a "thin" oil.

    Note: Heating of the 5/R hub may be needed to install onto the main shaft and chilling of the countershaft will assist installing the countershaft into the bearing plate.
