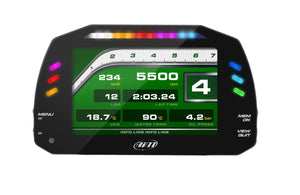

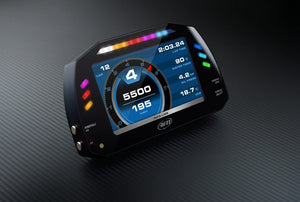

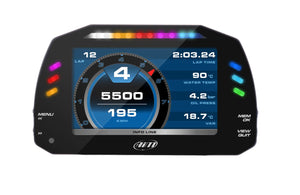

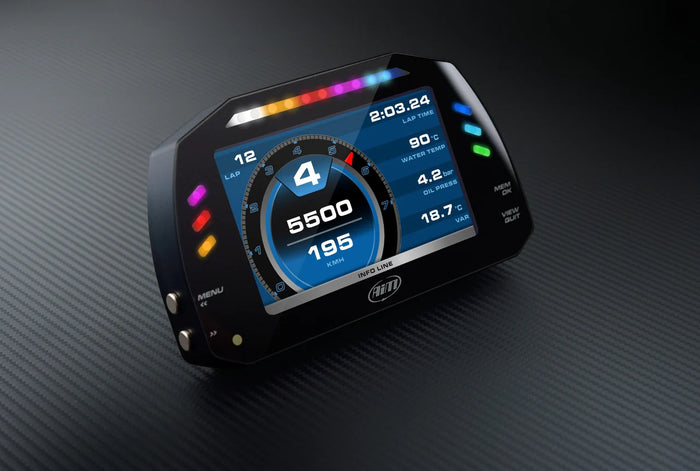

AiM Sports MXS 1.2 Compact Color TFT Dash And Data Logger

Product Description
$2,599.00
Maximum quantity available reached.

The MXS 1.2, the evolution of MXS, is a beautifully executed compact dash/data logger designed to put data at your fingertips. It can acquire data from your ECU, its internal accelerometer and gyro, the included GPS08 Module, analog/digital inputs and pre-defined math channels. The incredibly sharp, full-color TFT display puts it all front-and-center, in incredible color with a high contrast ratio. It even automatically adjusts its backlight based on ambient light to optimize visibility.

Freely configurable pages let you define all the custom pages you wish, choosing from a wide library of page styles and defining which data to display, their end of scale and units of measure. Swapping between pages is as easy as pushing a button!

GPS08

Thanks to the included GPS08 Module and AiM's Race Studio 3 software, you can immediately get lap times along with all data needed for engine tuning, shaking down car and driver, and for improving and refining driving technique.

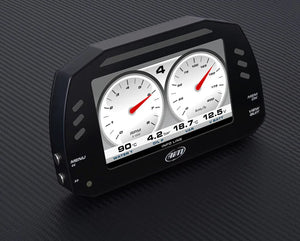

A MULTITUDE OF DISPLAYS

The MXS 1.2 displays your RPM scale plus all the data you need (speed, water temp, oil pressure, lap times and much more) in pre-configured pages.  Or you can customize pages as you wish, choosing from a wide library of page styles and defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using push buttons.

A 4GB non-volatile memory stores hours of information for detailed analysis using AiM's Race Studio 3 software. All data can be downloaded to your computer using a built-in secure Wi-Fi connection (no cable required).

LOTS OF INPUT/OUTPUT FLEXIBILITY

Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). CAN Inputs allow you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN Output allows you to send messages to the existing CAN network, adding to the vehicle system control possibilities!

The MXS 1.2 can also be connected to many different ECUs to log data gathered by each ECU. An internal three-axis accelerometer, gyroscope, and magnetometer; GPS08 input; four wheel-speed channels; lap time receiver input; and two digital outputs add up to a flexible, expandable data logger that can grow with you. It even has a screw-in port to add analog cameras used for back-up or rear view in visibility-challenged race cars!

SHIFT LIGHTS & ALARMS

Flexible alarms on the MXS 1.2 include six configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

The integrated shift light array features a host of advanced multicolored RGB shift light patterns that can be customized as you like, including RPM max for each individual gear.

DIGITAL OUTPUTS

The MXS 1.2 features two digital outputs (low-side type, switch to ground) that can be configured to activate/deactivate external systems (switch on/off additional lights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.

WiFi CONNECTIVITY

A secure 802.11 WiFi connection makes it even more convenient to configure, calibrate, and download your data wirelessly! No need to move your PC close to the vehicle anymore, you can do it from your trailer or tow vehicle up to 60 yards away.

TECHNICAL SPECS:

  • Compact 6.7" x 3.8" x 0.9" anodized aluminum housing
  • 5" TFT high-contrast color display
  • Internal 4GB memory
  • Screen resolution 800x480 pixels
  • Two Motorsport connectors and one Binder connector
  • Weight 1.2 lb. (530g)
  • Waterproof IP65

KIT INCLUDES:

  • MXS 1.2 Unit
  • GPS08 Module with cable
  • USB cable
  • 37-pin standard Deutsch-connector harness
  • Software installation CD with Race Studio 3 software.

All other sensors and modules sold separately.

      Vehicle Applications:

      • 1990-2005 Mazda Miata 1.6L NA6 & 1.8L NA8, NB1, & NB2
      Vendor: AiM
